Resettable high-voltage circuit protection for next-generation battery electric vehicles

Charged EVs7 min read

BEV architectures are transferring higher energy at higher rates

Current BEV platforms differ significantly from earlier generations. Several trends are changing electrical architecture:

Higher charge rates driven by fast-charging requirements

More stored energy to support longer range

More compact battery packaging that increases thermal and electrical density

Bidirectional power flow (V2L, V2H and V2G) that expands fault scenarios

Higher system voltages, including 400 V and 800 V platforms and beyond

Taken together, these trends increase the amount of energy transferred through compact systems. Protection and switching devices may therefore be required to operate under higher stress, shorter response windows and a broader range of high-voltage direct current (HVDC) fault conditions.

HVDC fault behavior is changing

HVDC faults are not new. What has changed is the context in which they occur. Higher stored energy, faster charging and denser packaging can allow faults to escalate more quickly. In some architectures, engineers must manage not only higher fault current, but also faster fault development, shorter decision windows and greater energy transfer in the first milliseconds of an event, including:

Rapid fault-current rise

Increased difficulty extinguishing DC arc energy

Reduced time available for protection decisions

Higher consequence of misclassification or delayed response

As system energy and charging power increase, some applications may need to consider short-circuit currents in the 20 kA to 30 kA range or higher. At the same time, normal fast-charging current may move closer to levels that reduce the margin between nominal operation and fault response.

This can narrow the operating window for protection devices.

In these conditions, devices may need to handle a wider range of operating and fault scenarios, including:

Continuous high current during charging

Rapid interruption of high fault current

Predictable operation during transients, signal errors, communication loss and auxiliary failure

Constraints in conventional protection architectures

Fuse and contactor architectures

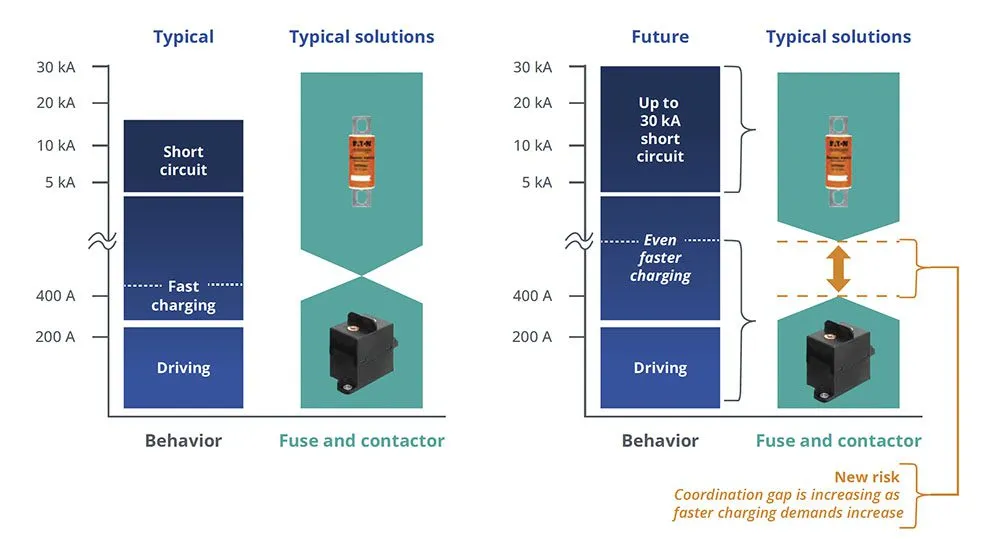

Conventional BEV protection depends on sequential coordination:

Detection by the BMS and sensors

Switching via contactors

Protection via fuses

This model assumes enough time for detection, signaling and handoff between components. As operating current and charging power rise, that margin can shrink. Under these conditions, it may become increasingly difficult to maintain reliable sequencing across the entire range of expected scenarios, and several limitations become evident.

Coordination gaps across detection, switching and interruption functions

Contactors may not be optimized to interrupt high-energy DC faults on their own

Potential for contact welding and degradation of isolation performance under severe fault conditions

In some cases, fuse response may not align with faster fault dynamics

Reduced design margin as system voltage, current and stored energy increase

These considerations do not necessarily indicate a design deficiency. In many cases, they reflect architectures operating closer to the limits assumed during earlier design cycles.

Pyrotechnic protection approaches

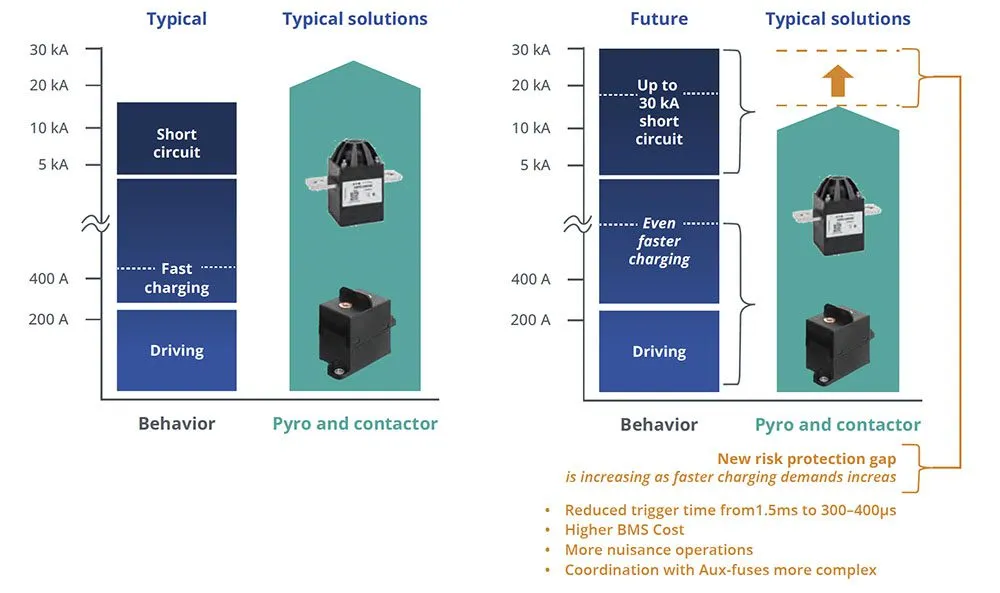

Pyrotechnic devices can address some fuse-coordination issues by forcing the circuit open. Depending on the implementation, they may also introduce a different set of constraints.

Dependence on an external trigger: In many designs, operation depends on a trigger signal from another system

One-shot operation: Following activation, service intervention and component replacement may be required

Faster trigger requirements: Future battery systems may require response times measured in hundreds of microseconds, depending on architecture and fault scenario

Additional BMS complexity and associated cost

Potential for nuisance activation: If evaluation windows become very short or system inputs are ambiguous

As fault energy increases, designers may need to balance earlier intervention against the risk of acting on incomplete information.

Protection performance is increasingly architecture-dependent

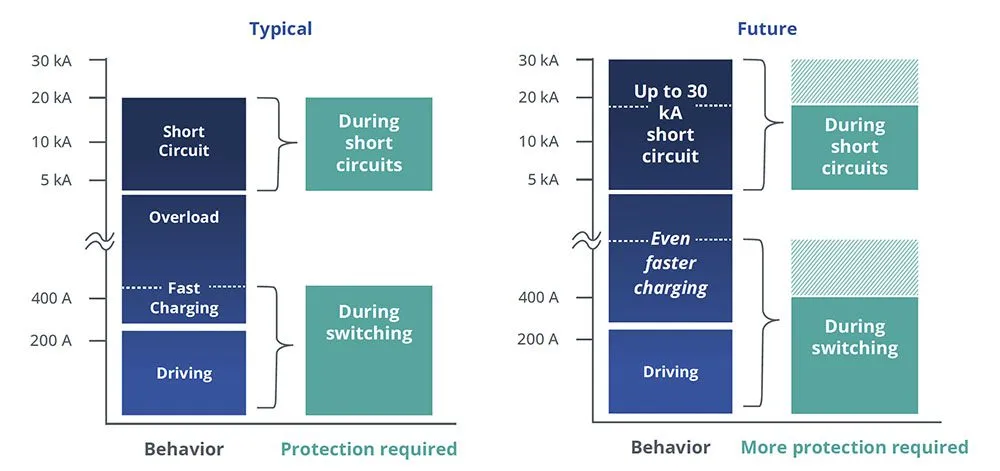

In earlier EV platforms, circuit protection was largely a component-level choice. Engineers selected contactors, fuses or pyrotechnic devices by rating, then coordinated them with timing margins and external control logic. If baseline requirements were met, many combinations could be made to work. For some modern BEV architectures, that approach may no longer provide sufficient margin on its own.

Protection performance can depend on how detection, switching, interruption, communication and power availability interact under severe conditions. When those functions are not aligned by design, component ratings alone may not be enough to achieve the desired level of protection performance.

Circuit protection is increasingly determined by system architecture, not only by individual component ratings. The protection concept influences fault response, subsystem dependencies, recovery capability and vehicle availability.

A protection architecture intended for future BEV platforms should:

Accommodate higher voltage, current and stored energy

Integrate detection, switching and protection functions where appropriate

Provide predictable response across the defined fault envelope

Maintain safe operation with limited dependence on external trigger chains

Minimize dependence on single-use protection elements where feasible

Permit recovery after non-catastrophic events where appropriate

Integrated protection architectures

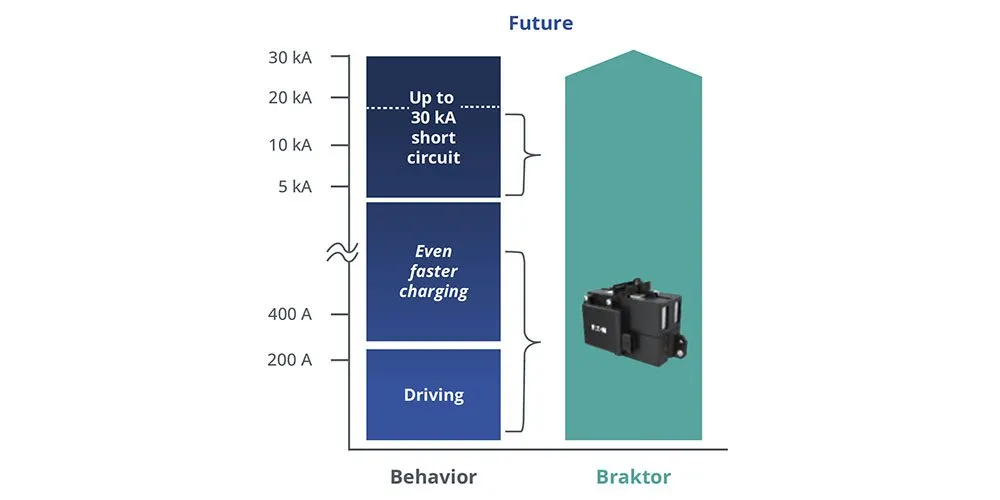

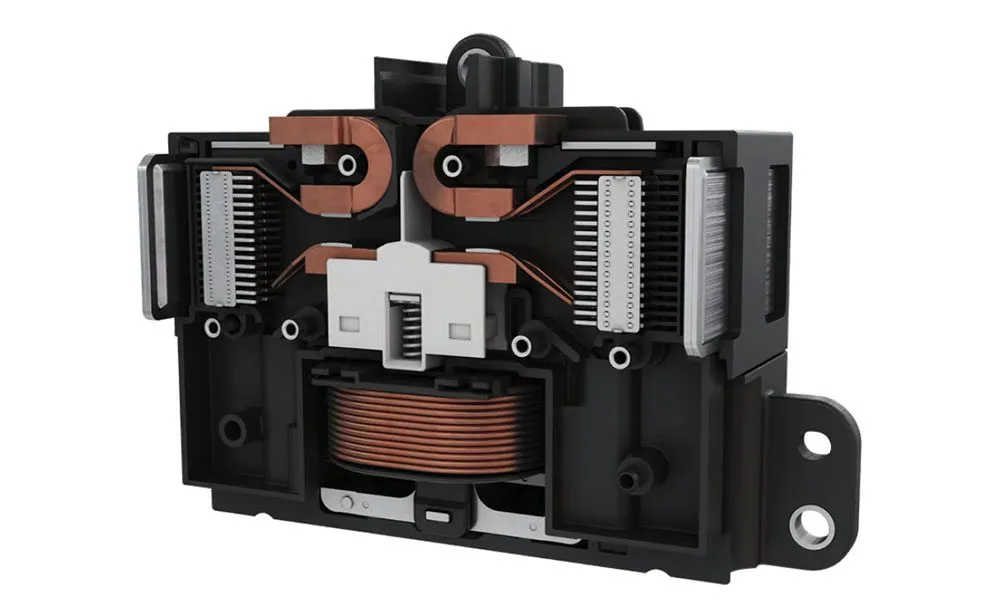

A different approach is emerging, one that integrates protection and switching into a single, self-contained device. Compared with architectures that coordinate separate contactors, fuses and pyrotechnic devices, integrated approaches eliminate coordination dependencies by design.

Combine detection, interruption and isolation functions within one device

Reduce dependence on BMS timing and external trigger chains in some implementations

Respond autonomously to defined high-energy DC fault conditions

Provide more consistent response across defined fault conditions in some application

Resettable protection and serviceability

Many real-world fault events, like the following, are not catastrophic.

Charging station failures

Communication loss on auxiliary systems

Transient overcurrent events

Sensor misreads or misfires

With single-use protection approaches, these events can still lead to:

Stranded vehicles

Costly component replacement

Battery pack swaps

Unclear liability across vehicle, grid, and charging infrastructure

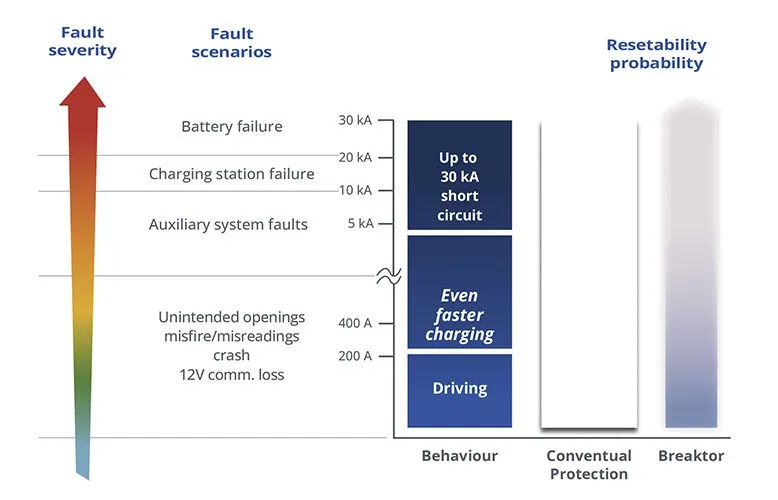

A resettable protection approach allows recovery from manageable events, support vehicle availability, and shift certain service actions to planned maintenance intervals. This can significantly reduce downtime and total cost of ownership

Evaluation questions for engineering teams

As protection becomes more architecture-dependent, engineering teams should also reconsider how technologies and suppliers are evaluated. In practice, that means asking questions such as:

Which fault scenarios exist across the entire ecosystem—vehicle, grid and charging infrastructure?

How often will protection devices encounter these events in the real world?

Which faults should permit recovery, and which should not?

Is the protection function self-contained, or does it depend on external systems and timing?

Can the technology scale with future BEV energy levels?

Is system response predictable and repeatable?

Conclusion

BEV electrical systems are evolving in ways that challenge protection architectures developed for earlier platforms. As energy levels, charging power and system complexity increase, protection strategies may need to evolve as well.

Legacy approaches are facing increasing constraints, not because they are poorly designed, but because system assumptions are changing. In some applications, coordination gaps can widen, dependencies can increase and available reaction time can shrink.

Integrated, resettable protection technologies represent a shift from single-use components toward architecture-level safety functions. By simplifying certain aspects of fault response, reducing selected dependencies and enabling recovery in

defined scenarios, they provide a more sustainable foundation for next-generation electric vehicle platforms.

Products featuring Breaktor circuit protection

Battery disconnect unit

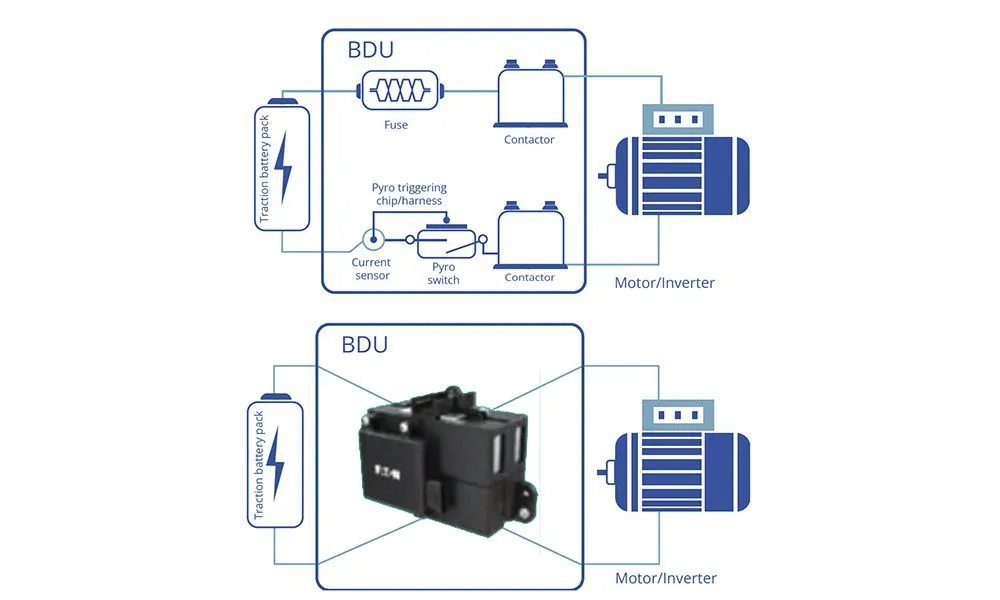

The Battery disconnect unit (BDU) is designed to efficiently distribute power throughout the EV system. With the integration of Breaktor, the BDU provides improved quality and simplified architecture by combining current switching and resettable bidirectional short-circuit protection with fast actuation (up to 900V).
